Ricoh announces pre-ordering for the 360-degree, live streaming video camera
Announced at CES 2017, RICOH R Development Kit delivers up 24 hours of fully spherical live streams
Revised on Monday, 24 April, 2017.
TOKYO and BARCELONA (Mobile World Congress 2017, Hall 8.0 J3), February 27, 2017－Ricoh today announced it is taking pre-orders of the RICOH R Development Kit, featuring camera capable of delivering up to 24 continuous hours of fully spherical, 360-degree live video streams. Showcased at Mobile World Congress 2017, the camera can be pre-ordered from http://ricohR.ricoh, with shipments scheduled to start in June 2017. The sales price will be $499.
Using Ricoh’s fully spherical imaging technology, the RICOH R Development Kit can live-stream fully spherical, 360-degree images in 2K resolution at 30 frames per second. Unique to RICOH R technology is the stitching of video within the camera in real time to the Equirectangular Projection Format, which is the standard format for fully spherical images. Video is then output via HDMI® or USB, and—by using an AC power adapter– continuous, live streaming up to 24 hours is possible. The camera records onto a micro SD card, which enables the body to be extremely thin and lightweight.
The RICOH R Development Kit consists of the camera, camera stand, downloadable software development kit (SDK), plus image-control tools and source code. Using the camera’s open API and the “RICOH R Console” image-control tool source code available through GitHub, the camera can be controlled via USB, which will enable its use in a variety of environments and industries such as telepresence and computer vision.
*1. Using AC adaptor

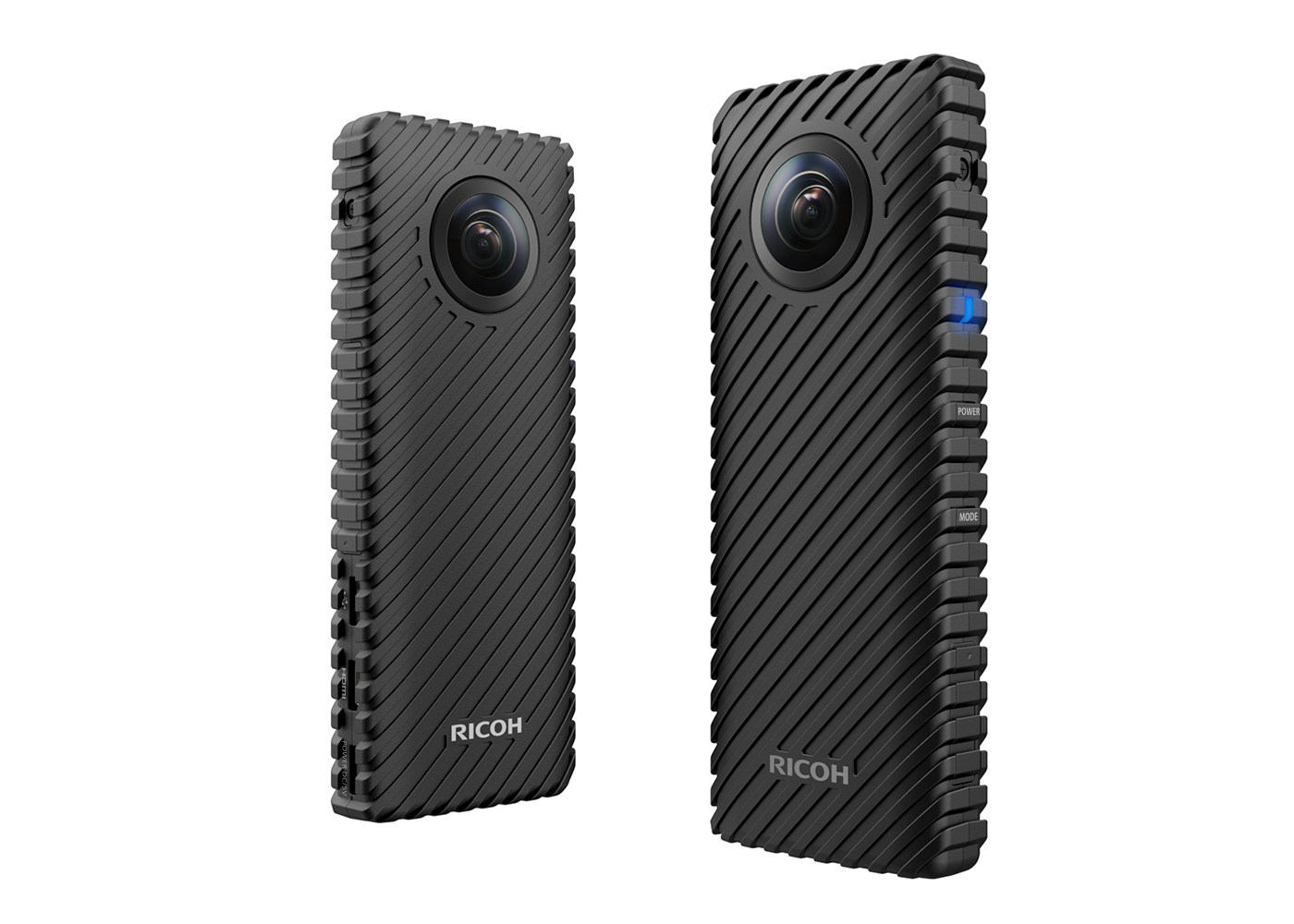

*2. This image is 3D CG for illustrative purposes and may differ from the actual product.
| Specifications
| |
| Video quality
| 1920 x 960, Equirectangular Projection Format, 30 fps
|
| Video out connector
| Micro HDMI® Type-D, Micro USB
|
| HDMI® video out
| Full HD, 59.94i
Actual size mode (1920 x 960 + 120), Full HD mode |
| USB video out*1 | UVC 1.5/H.264, 29.97 fps
Actual size mode (1920 x 960 + 120), Full HD mode |
| Audio out
| Built-in monaural microphone
|
| Video recording media
| MicroSD card up to 32GB
|
| Video file format
| MP4
|
| Video recording time*2 | Normal mode approx. 30 minutes
Extended mode approx. 60 minutes |
| External power input
| USB Micro B
|
| AC adapter
| Uses a USB AC adapter of 5 V/1.5 A or greater
|
| Usage temperature range*3*4*5*6 | 0 degree Celsius to 40 degrees Celsius*7 |
| External dimensions*8 | 46 mm (W) x 118 mm (H) x 23 mm (D)
|
| Weight
| 125g
|
| What’s in the box
| Stand, carrying case, and USB cable x2
|
*2. The maximum file size that can be recorded is 4 GB.
*3. Using the stand or a tripod is recommended.
*4. Please be careful when handling the camera directly since the camera will get hot after long hours of usage.
*5. Please do not touch the camera for a long period of time to prevent from getting low temperature burn.
*6. The camera may automatically shut down if it is overheated by certain usage.
*7. 30 degrees Celsius or less for 24-hour non-stop operation.
*8. Including the lens.
HDMI, the HDMI logo and High-Definition Multimedia Interface are the trademarks or registered trademarks of HDMI Licensing in the United States and other countries.
All other trademarks are the property of their respective owners.
